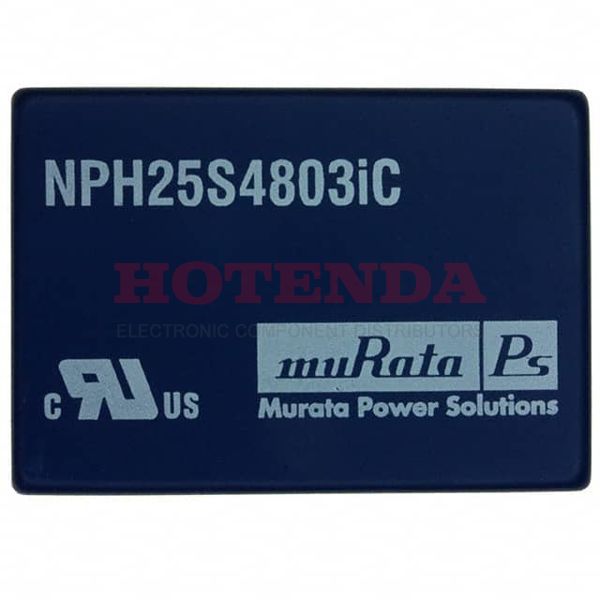

NPH25S4803IC

new-10%

Manufacturer part number:NPH25S4803IC

Manufacturer:Murata Power Solutions Inc.

Description:NPH25S4803IC datasheet pdf and DC DC Converters product details from Murata Power Solutions Inc. stock available on our website

Case Package:SOT-23

Datasheet:NPH25S4803IC Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	6-DIP Module
Number of Pins	4
Operating Temperature	-40°C~110°C
Packaging	Tube
Series	NPH25S (25W)
Size / Dimension	1.97Lx1.38W x 0.39 H 50.0mmx35.1mmx9.9mm
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Type	Isolated Module
Terminal Finish	Gold (Au) - with Nickel (Ni) barrier
Applications	ITE (Commercial)
Subcategory	Other Analog ICs
Power Rating	25W
Max Power Dissipation	25W
Technology	HYBRID
Terminal Position	DUAL
Terminal Form	PIN/PEG
Number of Functions	1
Depth	50mm
Pin Count	6/4
Number of Outputs	1
Efficiency	83%
Voltage - Isolation	1.5kV
Voltage - Input (Max)	75V
Output Voltage	3.4V
Max Output Current	7.3A
Voltage - Input (Min)	36V
Input Voltage-Nom	48V
Trim/Adjustable Output	NO
Output Current	7.3A
Output Power	25W
Current - Output 1	7.3A
Nominal Input Voltage	48V
Isolation	Isolated
Height	9.906mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
