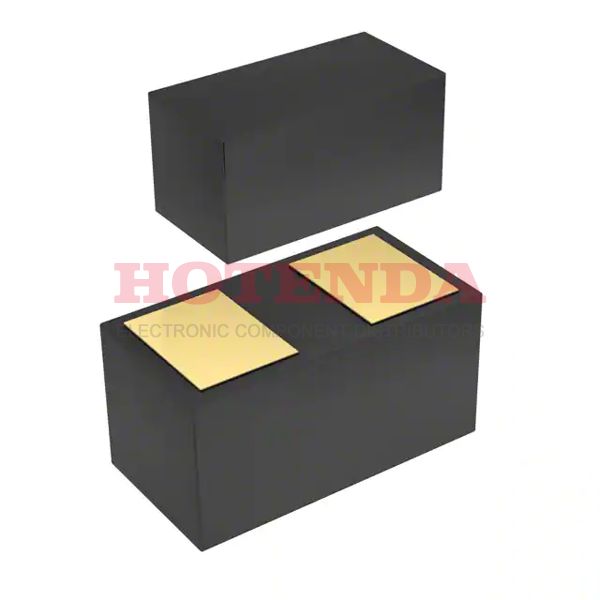

ESD112B102ELSE6327XTSA1

new-10%

Manufacturer part number:ESD112B102ELSE6327XTSA1

Manufacturer:Infineon Technologies

Description:ESD Suppressor TVS ±20KV 2-Pin TSSLP T/R

Case Package:SOT-23

Datasheet:ESD112B102ELSE6327XTSA1 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-55°C~125°C TJ
Packaging	Tape & Reel (TR)
Published	2005
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Zener
Terminal Finish	Gold (Au)
Applications	RF Antenna
Capacitance	400FF
Technology	AVALANCHE
Terminal Position	BOTTOM
Depth	320μm
Number of Elements	1
Working Voltage	5.3V
Number of Channels	1
Leakage Current	50nA
Element Configuration	Single
Power Line Protection	No
Current - Peak Pulse (10/1000μs)	3A 8/20μs
Max Reverse Leakage Current	50nA
Voltage - Clamping (Max) @ Ipp	21V
Clamping Voltage	29V
Voltage - Reverse Standoff (Typ)	5.3V Max
Peak Pulse Current	3A
Reverse Standoff Voltage	5.3V
Max Surge Current	3A
Direction	Bidirectional
Halogen Free	Halogen Free
Test Current	1mA
Breakdown Voltage	7V
Capacitance @ Frequency	0.23pF @ 1MHz
ESD Protection	Yes
Height	320μm
Length	620μm
Width	320μm
RoHS Status	RoHS Compliant
Lead Free	Lead Free
