Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), Concave, Long Side Terminals
Surface Mount	YES
Terminal Shape	WRAPAROUND
Number of Pins	8
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2011
Series	742
Size / Dimension	0.126Lx0.063W 3.20mmx1.60mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Temperature Coefficient	±200ppm/°C
Resistance	680kOhm
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Subcategory	Array/Network Resistors
Packing Method	TR, PAPER, 7 INCH
Technology	METAL GLAZE/THICK FILM
Number of Functions	4
Construction	Chip
Resistor Type	ARRAY/NETWORK RESISTOR
Rated Power Dissipation (P)	0.252W
Number of Elements	1
Working Voltage	50V
Size Code	0612
Number of Resistors	4
Circuit Type	Isolated
Power Per Element	62.5mW
Height Seated (Max)	0.028 0.70mm
RoHS Status	ROHS3 Compliant

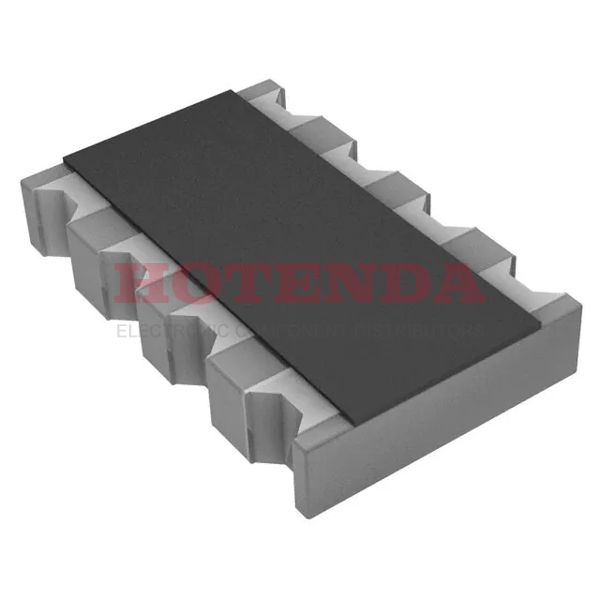

742C083684JP
