06033C222JAT2A

  • 06033C222JAT2A
  • 06033C222JAT2A

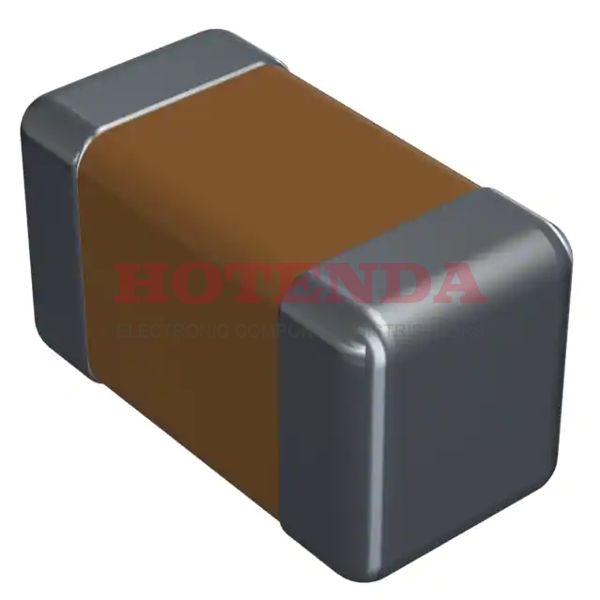

06033C222JAT2A

06033C222JAT2A

AVX Corporation

06033C222JAT2A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

06033C222JAT2A Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Number of Pins 2
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Size / Dimension 0.063Lx0.032W 1.60mmx0.81mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Temperature Coefficient X7R
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Applications General Purpose
Voltage - Rated 25V
Capacitance 2200pF
Voltage - Rated DC 25V
Depth 810μm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Dielectric X7R
Length 1.6mm
Width 812.8μm
Thickness (Max) 0.035 0.90mm
Thickness 889μm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.125073 $0.125073
500 $0.091965 $45.9825
1000 $0.076638 $76.638
2000 $0.070310 $140.62
5000 $0.065710 $328.55
10000 $0.061126 $611.26
15000 $0.059116 $886.74
50000 $0.058128 $2906.4
06033C222JAT2A Product Details

06033C222JAT2A Overview


A program's size/dimension is 0.063Lx0.032W 1.60mmx0.81mm for this device.Temperatures greater than -55°C are needed for stable operation.Generally, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance with respect to temperature changes, and it is equal to X7R.Ceramic capacitor runs on voltage of 25V - Rated DC.

06033C222JAT2A Features


a size/dimension of 0.063Lx0.032W 1.60mmx0.81mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 25V

06033C222JAT2A Applications


There are a lot of AVX Corporation 06033C222JAT2A applications of ceramic capacitors.

  • Mobile devices
  • General electronic equipment
  • Power supply circuit
  • Servers, PCs, tablets
