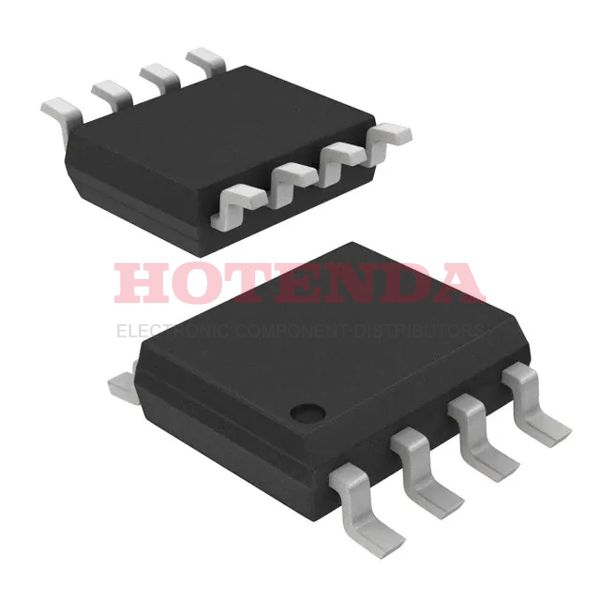

ADUM1100UR

new-10%

Manufacturer part number:ADUM1100UR

Manufacturer:Analog Devices Inc.

Description:DGTL ISO 2500VRMS 1CH GP 8SOIC

Case Package:SOT-23

Datasheet:ADUM1100UR Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Lifecycle Status	PRODUCTION (Last Updated: 2 weeks ago)
Contact Plating	Lead, Tin
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Surface Mount	YES
Number of Pins	8
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	iCoupler®
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Type	General Purpose
Max Power Dissipation	240mW
Technology	Magnetic Coupling
Voltage - Supply	3V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Supply Voltage	3.3V
Base Part Number	ADUM110
Pin Count	8
Voltage - Isolation	2500Vrms
Operating Supply Voltage	3.3V
Number of Channels	1
Nominal Supply Current	800μA
Output Current	20mA
Propagation Delay	18 ns
Turn On Delay Time	18 ns
Data Rate	100Mbps
Rise / Fall Time (Typ)	3ns 3ns
Channel Type	Unidirectional
Propagation Delay tpLH / tpHL (Max)	18ns, 18ns
Common Mode Transient Immunity (Min)	25kV/μs
Inputs - Side 1/Side 2	1/0
Isolated Power	No
Pulse Width Distortion (PWD)	2 ns
Length	4.9mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead
